Introduction

Like most watercourses in the Fens, this has more than one name, but with added complications.

It comprises three drainage channels, or rather two channels plus the northern two-thirds of another. The other third of the latter was cut off and joined to yet another channel forming a completely different system.

The two systems run alongside each other for many miles seperated by the Middle Level barrier bank which is the western rim of the Ouse washes and both include the name Old Bedford River in their titles - which causes much confusion.

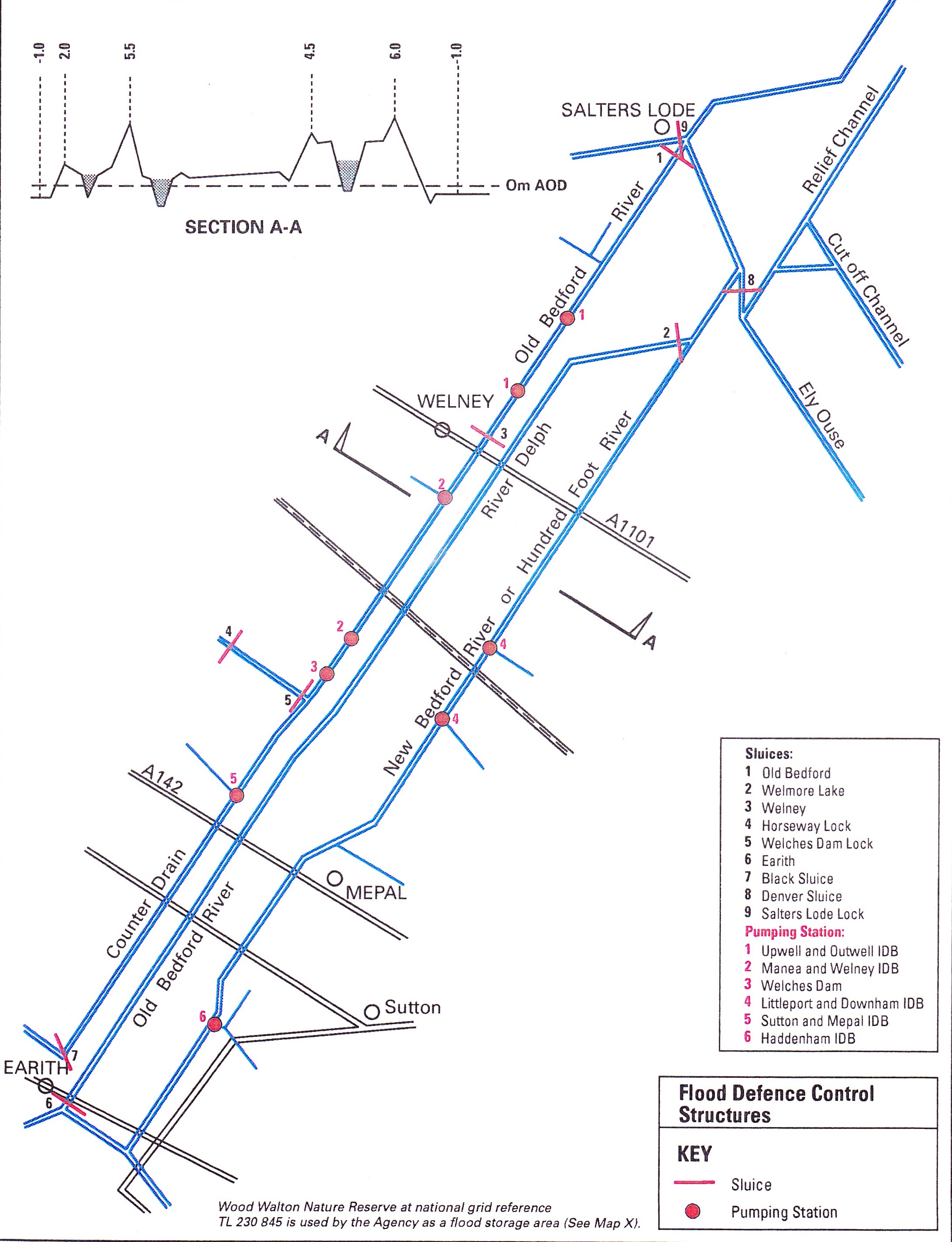

The common abbreviation for this system is CD/OBR, and it runs from Somersham (bottom left, north and west of Earith) to Old Bedford Sluice (marked by a black 1) at Salters Lode (near top) Plan: Environment Agency
The other system is the Old Bedford/Delph River, OB/DR or OBR/DR for short, which runs from Earith Sluice (at bottom marked 6 in black) to the John Martin Sluice at Welmore Lake (black 2).

Locally of course, sections are known by their individual names and for clarity I, like many others, do the same. Difficulty arises though when writers of official documents use the local name of one section when referring to another.

Scroll down to follow the story or choose a section to jump to from the drop-down menu.

The first part of this system is the Cranbrook Drain which starts near Somersham and drains 6,400 acres (1948 figure²) of groundwater and treated effluent discharge from the so-called "highland" areas around there and Colne before flowing south-east to Black Sluice (filled-in 2017, see below) just north of Earith.

There it joins what is now the start of the second part of the system, the Counterdrain (also known as the Counterwash Drain, yet another complication). The Counterdrain is shown on the 1950 OS map starting much further south [in what is now a housing estate in Earith (and at a mill or pump on the 1901 OS map?]. (Yet another confusion is that Samuel Wells' map of 1829 doesn't show the sothern part, but he wasn't always accurate).

Nearly all the water in this section is drained from districts within the Middle Level of the fens, but outside the jurisdiction of the Middle Level Commissioners, being managed by local IDBs, Sutton & Mepal (11,630 acres in 1948²) and Manea & Welney (7,680 acres in 1948² ). It is also outside the floodplain of the Ouse Washes but can have a large effect on flooding within the washes.

The river then flows to Welches Dam where at a bend it joins the third section, the northern part of the Old Bedford River, which receives water from the Upwell IDB, and a small amount from private land at Lake Farm. Until 1948, the system could only be discharged (emptied) by gravity at Salters Lode, either though the old Bedford Sluice into the tidal River Great Ouse when tide levels allowed, or over a weir or spill-way just upstream of the sluice into Well Creek. Both methods are still used, but generally, if the sluice cannot be opened (due to tides or siltation) it is pumped through the Barrier Bank at Welches Dam into the OB/DR and subsequently discharged into the tidal New Bedford River or Hundred Foot Drain at Welmore Lake.

The CD/OBR system has been classified as a "main river" since late 1943/early 1944 after the Grt Ouse Catchment Board asked for and was given complete instead of partial control of the west (low) bank. They were already responsible for the Barrier Bank between it and the OBR/DR. Management has passed through various successor organisations and now is in the hands of the Environment Agency (EA).
The Counterdrain and Old Bedford Rivers are both man-made but Cranrook Drain appears to be, or follows the course of, a natural watercourse, severed when the original Bedford River (later renamed Old Bedford River) was cut in 1632-1637. Nevertheless, a 2008 EA publication decribes it as an 'artificial waterbody'. All are shown on the Jonas Moore map dated 1684 below left, which I've turned clockwise 17˚ to align with the 1977 OS map on the right.

Black Sluice

This used to connect Cranbrook Dain to the Old Bedford River via a small brick tunnel through the Middle Level barrier bank (MLBB) where Cranbrook Drain joins the Counterdrain (OS grid ref TL 3971 7595) 0.8m/1.35km north-east of Earith Sluice. It allowed water to flow between Cranbrook Drain and the Old Bedford River in either direction (in certain circumstances) via a manually operated vertical guilotine slacker on the east side of the barrier bank. The slacker was removed and the tunnel filled in in 2017 as part of the Middle Level Barrier Bank refurbishment works.

EA sources have given various and sometimes contradictory uses for the sluice. I believe the primary function was to allow flood water from Cranbrook Drain to flow into the Old Bedford rather than the Counterdrain which had a restricted capacity at Sutton Gault. It could also (in theory at least, see below) allow water from the Old Bedford into the Counterdrain for summer irrigation.

It isn't mentioned in the Middle Level Acts ¹ published in 1875, but it is named on the 1824-36 OS map and on Samuel Wells' map of 1829. I can't help thinking that it must have been a lot earlier than that.

This photo aligns with the maps above.

In the photo above, the inlet into Black Sluice is at the bottom. The junction in the centre of the photo marks the end of Cranbrook Drain flowing down from the left and into what has been since c1970 the the start of the Counterdrain, flowing off to the right.

The right photo shows the start of the tunnel and its brickwork.

Note in both photos the water-level gauge, and slots in side walls for 'dam-boards' (timber or wooden planks placed across a sluice to seal it off for maintenance).
Photos: Eddy Edwards, Nov 2013

Prior to 2000, the only control was a flap gate at the outfall end, allowing floodwater from Cranbrook Drain to flow into the OBR/DR instead of into the Counterdrain. The sluice was described in a 1996 National Rivers Association (NRA)  document as "moribund" (?) and hadn't been used for years and they were considering closure.

In a 1998 document, The Middle Level Commissioners (MLC) strongly opposed closure, indeed suggested that a "new pumping station at Black Sluice would be beneficial".

In 2000, the one-way flap gate was replaced with a penstock which enables water to pass in both directions allowing, in theory, water transfer into the Counterdrain from the OB/DR during summer for irrigation. However, a 2002 document said that was not generally possible as levels in the OB/DR are lower than in the CD/OBR (quoted as approx 0.5m OD against 0.91m OD).

Here you can see the top of the penstock frame just above the green cott in the OB/DR, and the long screwed rod which is turned to raise or lower the gate. Normally the rods are locked to prevent unauthorised use but I don't recall seeing any security device. But I guess few passers by would be carrying a large spanner to turn it.


This was the CD/OBR level on 1st November 2013

When I visited in July 2013 the way down to the penstock was heavily overgrown, but by my next visit in Nov 2013, the path was clear, with some human intervention I think rather than just die-back. Perhaps in readiness for opening the sluice for winter flood relief?

Feary's or Craneford (Farm?)

Named on 1824-1836 OS map.

The start of the 1 mile Hovertrain test runs started just north of here.


The Jolly Bankers

Once there was a pub here (guess its name), a farmhouse or cottage, and and a (chain?) ferry across the washes to Sutton Chain.

Now, there are two bridges. One, a Bailey Bridge (an ex-army temporary bridge) accessed via a flood-gate across a gap in the Barrier Bank, goes over the Old Bedford into the Washes.

Oh, and also a rather silly and superfluous sign erected, probably at great expense, by the EA.
